Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine

1 set
MOQ
negotiate
Price
Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Efficiency, Easy To Operate
Condition: Used
Power Source: Electric
Usage: Cutting And Sewing Used Woven Bags
Max Width Of Cutting Bag: 700mm
Core Components: PLC
Fold Width Of Bag Bottom: 20-30mm
Power: 18kw
Highlight:

Automatic pp woven bag cutting sewing machine

,

18kw pp woven bag cutting sewing machine

,

Used woven bag cutting machine

Basic Infomation
Place of Origin: China
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description

Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine, Smokeless Knife Up And Down



Features:

1.Auto pneumatic fabric roll loading, static elimination device.

2.EPC for woven bag and liner bag.

3.Printing mark tracking, bag length contrlolled by servo system.

4.Hot cutting, auto mouth open.

5.Cold cutting, Servo system control (Optional)
6.Auto alarm for serving thread break, abnormal bag sending and folding.

7.Liner Bag automatic bottom sealing, cutting and inserting.

8.PLC centralized control, Touch screen display parameter setting and record.

9.High quality imported/ domestic sewing machine.

10.Inverter control speed, Auto bag counting, folding, transportation.



Technical Parameters:

Model UW-700
Max.Width of cutting bag 700mm
Diameter of unwinding cloth ≤φ1200mm
Length of cutting bag 500-1300mm
Production capacity 15-25pcs/min
Stitch Range Double thread, chain
Length of stitch 5-14mm
Fold wigth of bag bottom 20-30mm
Max. dia. of unwinding 1200mm
Power 18KW

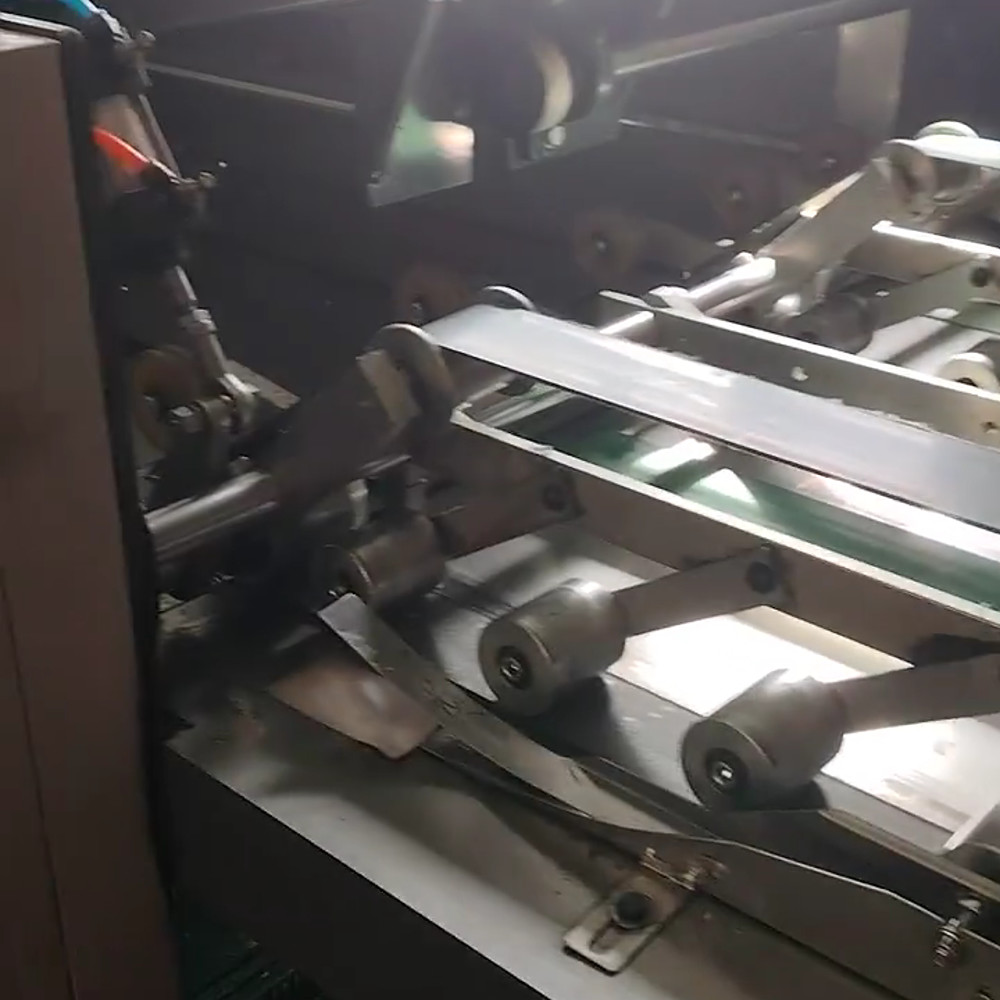

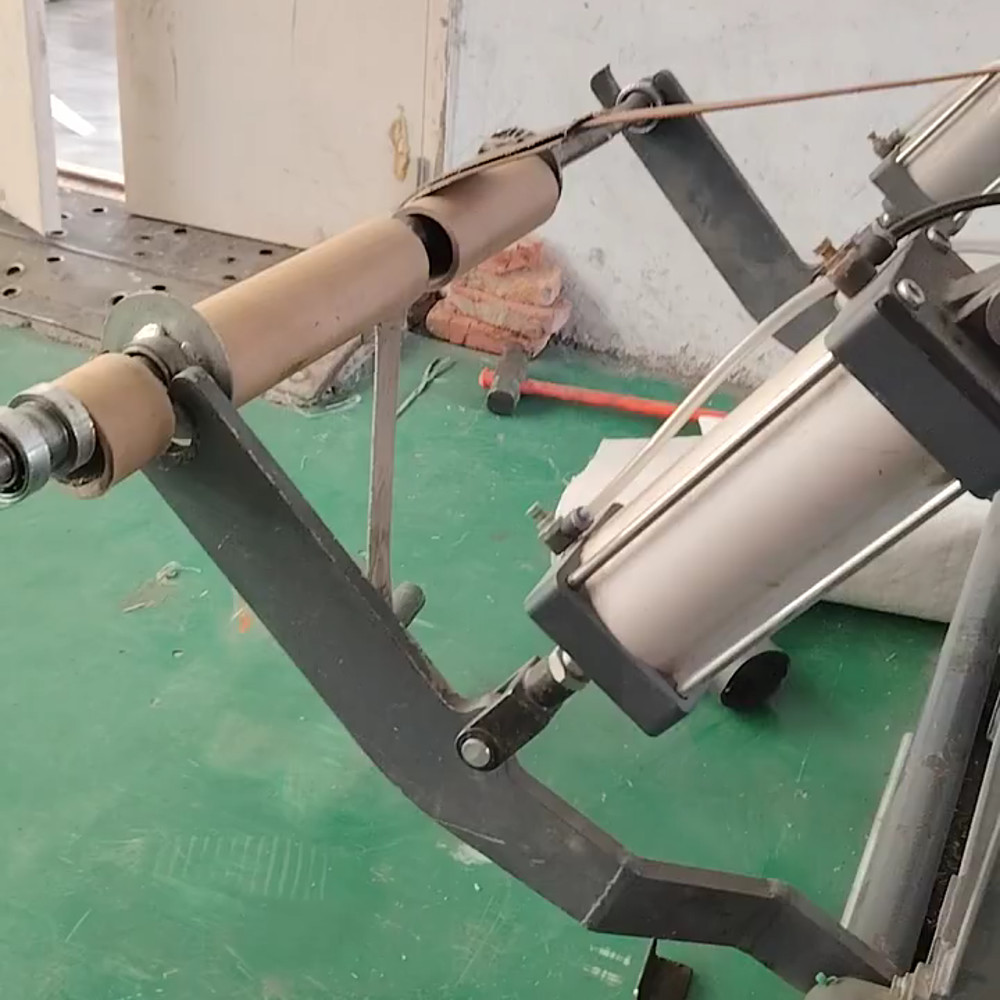

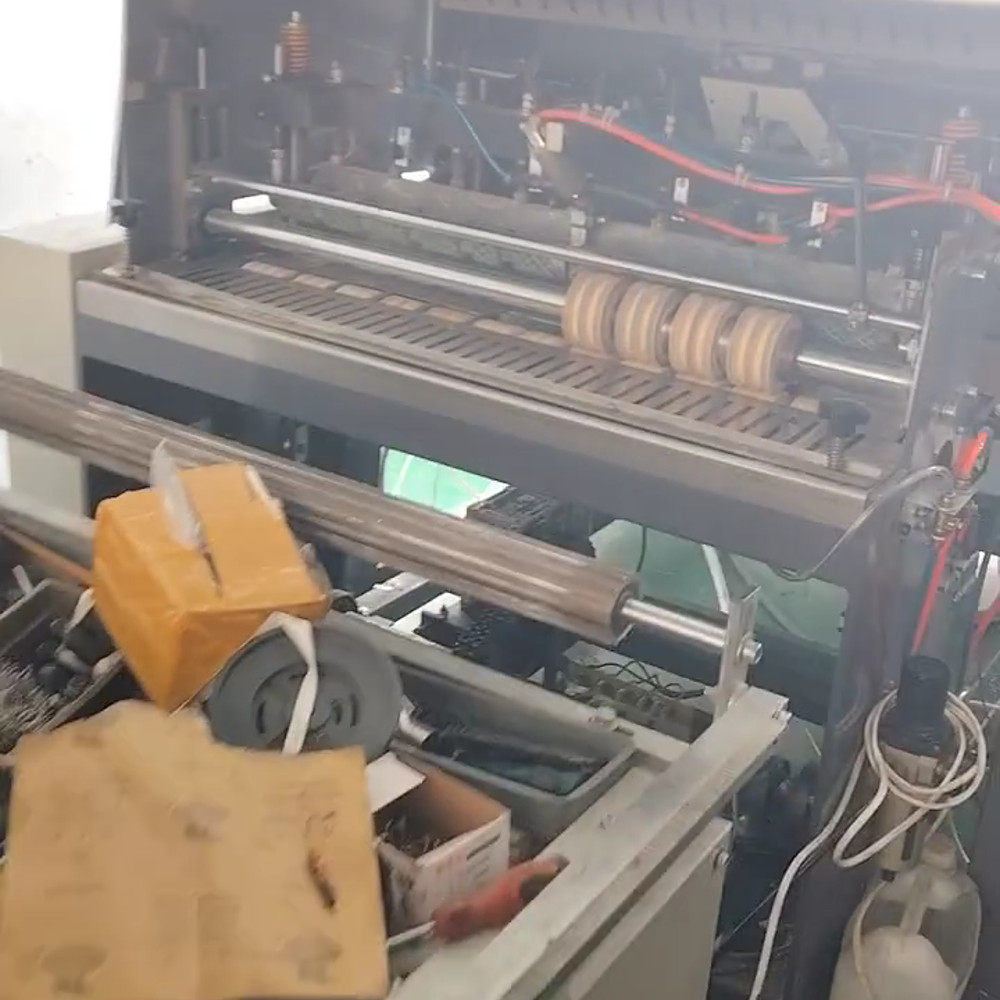

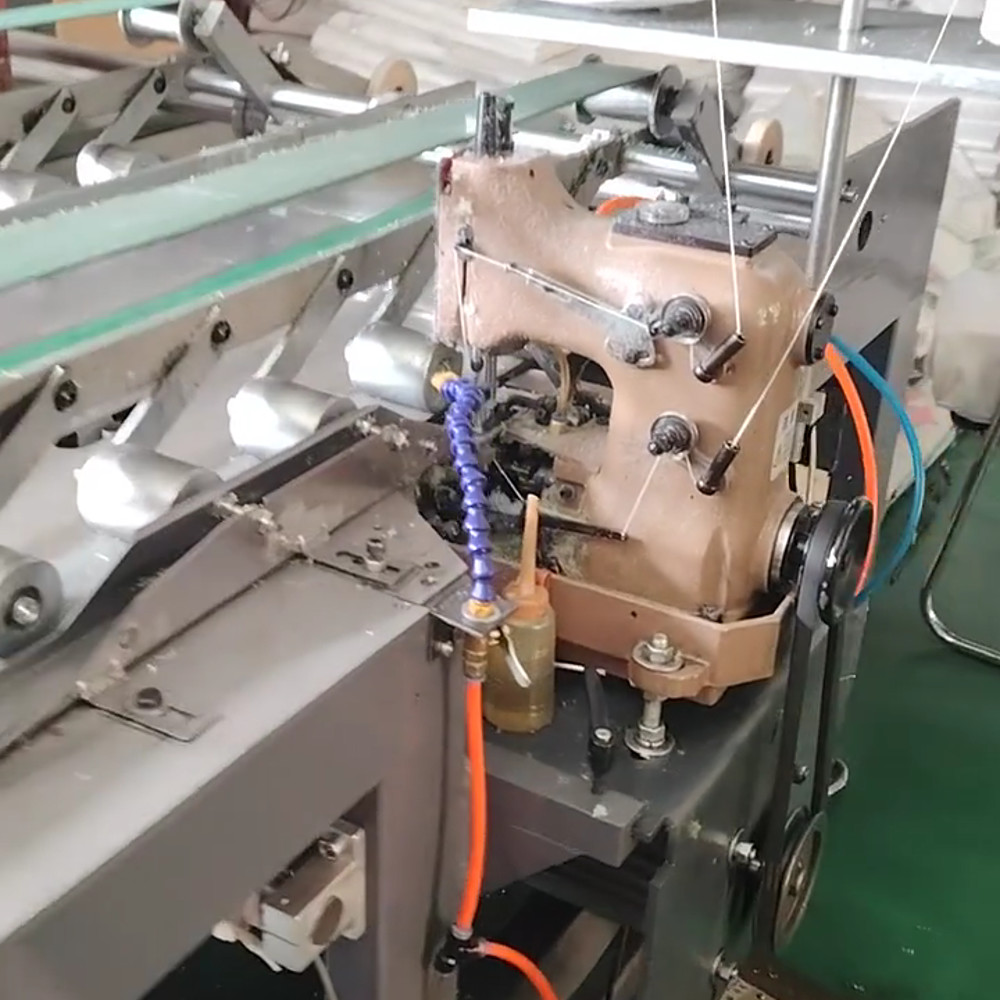

Machine Photo:

 Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine 0Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine 1Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine 2Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine 3

FAQ:

1. Are you manufacturer or trading company?

We are a specialized manufacturer.



2. Is your machine automatic or manual ?
Automatic.

3. How do you control the quality?
Professional QC team comply with TQM insure you the quality. Each step is in compliance to the standards. At the same time, we will take photos or shoot video for you.



4. What is the machine warranty?

One Year.



5. How long is the delivery time?

It's about 15-30 days.



6. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
