Features

Specifications

Features: High Efficiency, Easy To Operate

Condition: Used

Power Source: Electric

Usage: Cutting And Sewing Used Woven Bags

Cutting Length: Customizable

Production Capacity: 100-120 Bags/min

Bag Material: Woven Bags

Sewing Speed: Adjustable

Highlight:

Cold sleeve sewing machine

Heat sleeve sewing machine

120 Bags/Min cutting and sewing machine

Basic Infomation

Place of Origin: China

Certification: CE ISO

Payment & Shipping Terms

Packaging Details: Wooden Case

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 10 sets/month

Gallery

100-120 Bags/Min Used Cold Heat Sleeve Sewing Machine For Woven Bag

Product Description

Used Cold Heat Sleeve Sewing Machine For Woven Bag Made In China

Features:

1.Auto pneumatic fabric roll loading, static elimination device.

2.EPC for woven bag and liner bag.

3.Printing mark tracking, bag length contrlolled by servo system.

4.Hot cutting, auto mouth open.

5.Cold cutting, Servo system control (Optional)
6.Auto alarm for serving thread break, abnormal bag sending and folding.

7.Liner Bag automatic bottom sealing, cutting and inserting.

8.PLC centralized control, Touch screen display parameter setting and record.

9.High quality imported/ domestic sewing machine.

10.Inverter control speed, Auto bag counting, folding, transportation.

Technical Parameters:

Model	UW-700
Max.Width of cutting bag	700mm
Diameter of unwinding cloth	≤φ1200mm
Length of cutting bag	500-1300mm
Production capacity	15-25pcs/min
Stitch Range	Double thread, chain
Length of stitch	5-14mm
Fold wigth of bag bottom	20-30mm
Max. dia. of unwinding	1200mm
Power	18KW

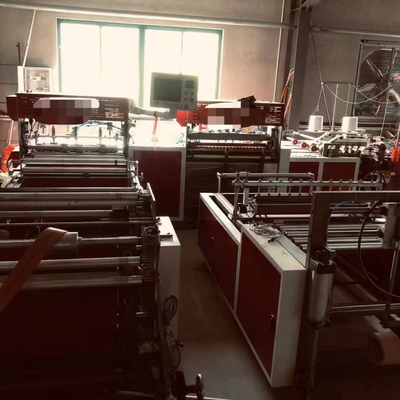

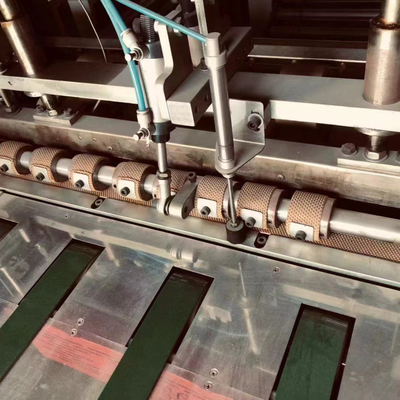

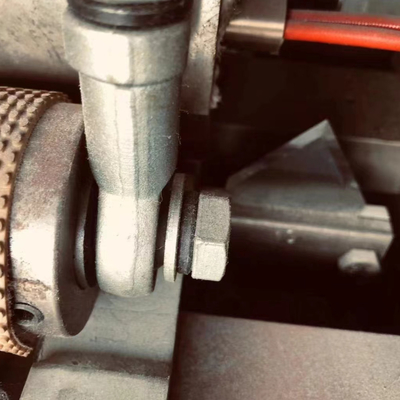

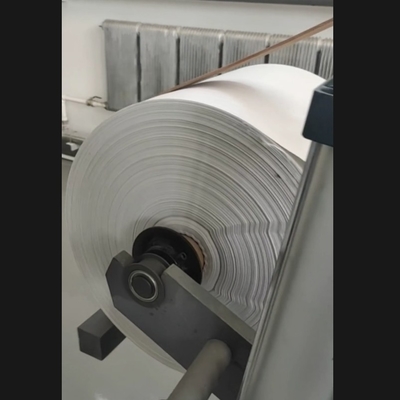

Machine Photo:

100-120 Bags/Min Used Cold Heat Sleeve Sewing Machine For Woven Bag 0

FAQ:

1. Are you manufacturer or trading company?

We are a specialized manufacturer.

2. Is your machine automatic or manual ?
Automatic.

3. How do you control the quality?
Professional QC team comply with TQM insure you the quality. Each step is in compliance to the standards. At the same time, we will take photos or shoot video for you.

4. What is the machine warranty?

One Year.

5. How long is the delivery time?

It's about 15-30 days.

6. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
