Used Circular Loom Machine For Woven Bags Universal Intelligent

1 set
MOQ
negotiate
Price
Used Circular Loom Machine For Woven Bags Universal Intelligent
Features Gallery Product Description Request A Quote
Features
Specifications
Winding Motor Power: 10kgs Torque Motor
Normal Rating Of Main Motor: 2.2kw
Weft Density: 10-24PCS/10cm
Working Width: 60-750mm
Maximum Weaving Speed: 300-400 RPM
Power Consumption: 5-7 KW
Additional Features: Automatic Stop Motion, Electronic Control System
Condition: Used
Highlight:

Woven Bags Used Circular Loom

,

Universal Intelligent Used Circular Loom

,

Intelligent Used Circular Loom

Basic Infomation
Place of Origin: China
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description

Used Circular Loom Machine For Woven Bags Universal Intelligent



Descripition:
Mesh bag circular loom is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.

Advantages:
1. The structure design of the whole machine is novel and reasonable, the maintenance is convenient.
2. High speed, low noise , low friction, energy saving , high efficiency.
3. Adopting the interweaving technology, the weft is not easy to loosen, and it is not easy to stretch after filling with fruits and vegetables.
4. The loom is controlled by Inverter, and it will automatically stop if the weft are finished or the warp, weft yarn is cut off, machine also equip with a meter counter.
5. Intelligent system is used for lifting and winding of fabric, automatic tracking and synchronization.


Main technical Datas:

Working width,double flat 60-750mm
Number of shuttles per machine 4
weft density 10-24pcs/10cm
Speed 0-120RPM
Warp feeding Motor
Inner diameter of Bobbin 38mm
Bobbin length 230mm
Max. bobbin diameter 100mm
Number of Warp yarns 512pcs
Normal rating of main motor 2.2kw
lift motor power : 22N
winding motor power: 10kgs Torque motor
Total power 3Kw
Installed size (mm) 10500* 2400* 3200
weight 2T

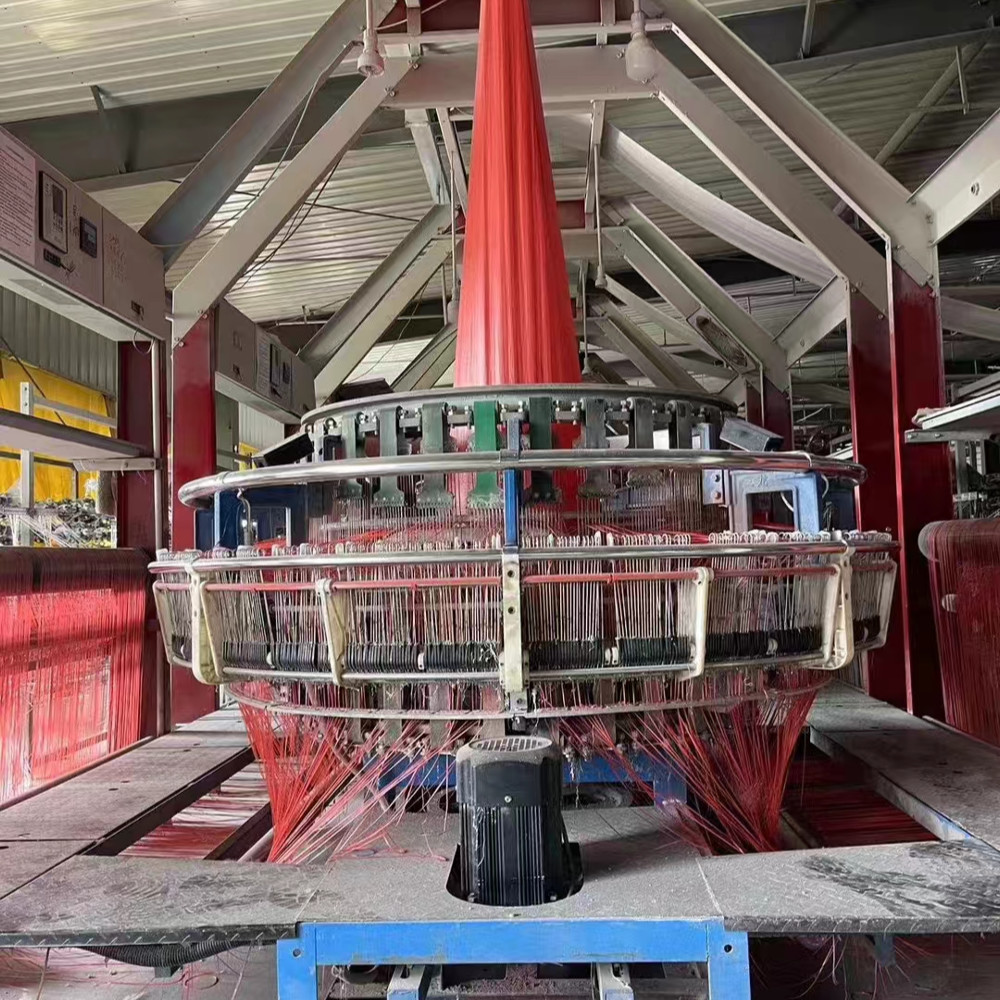

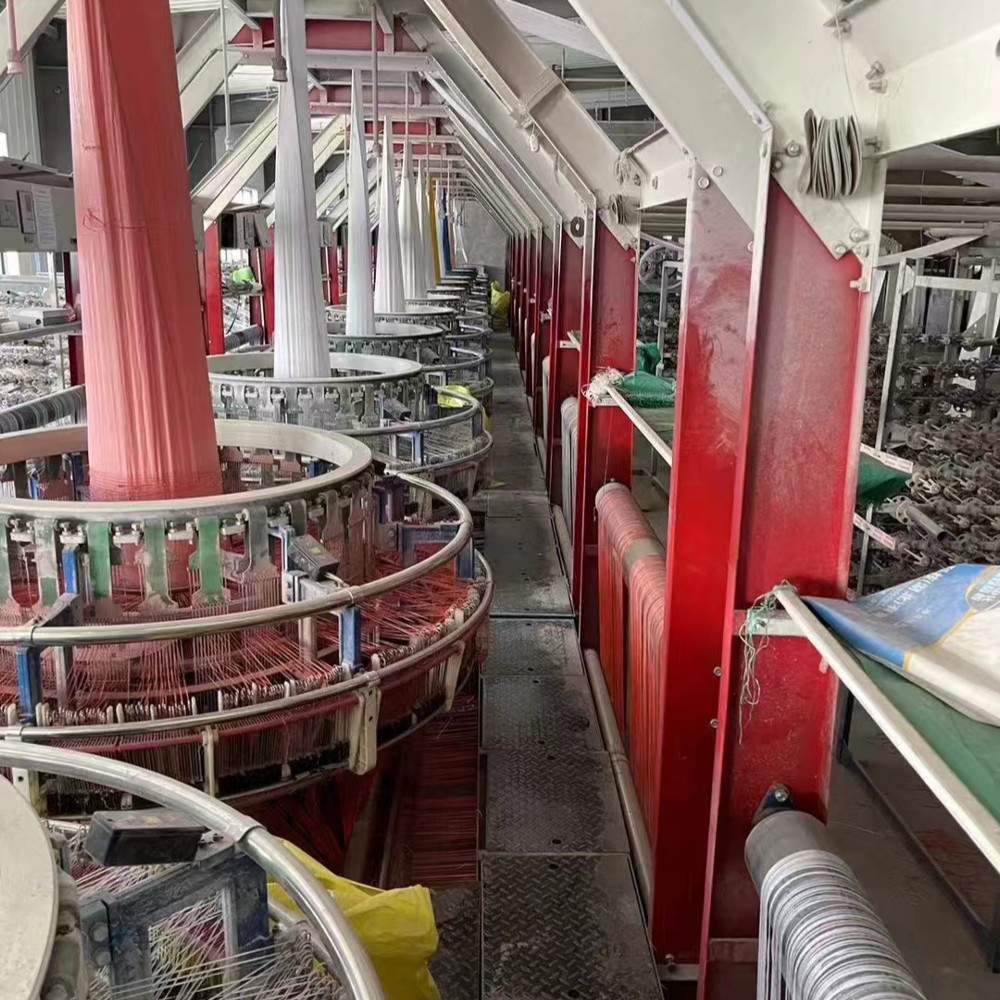

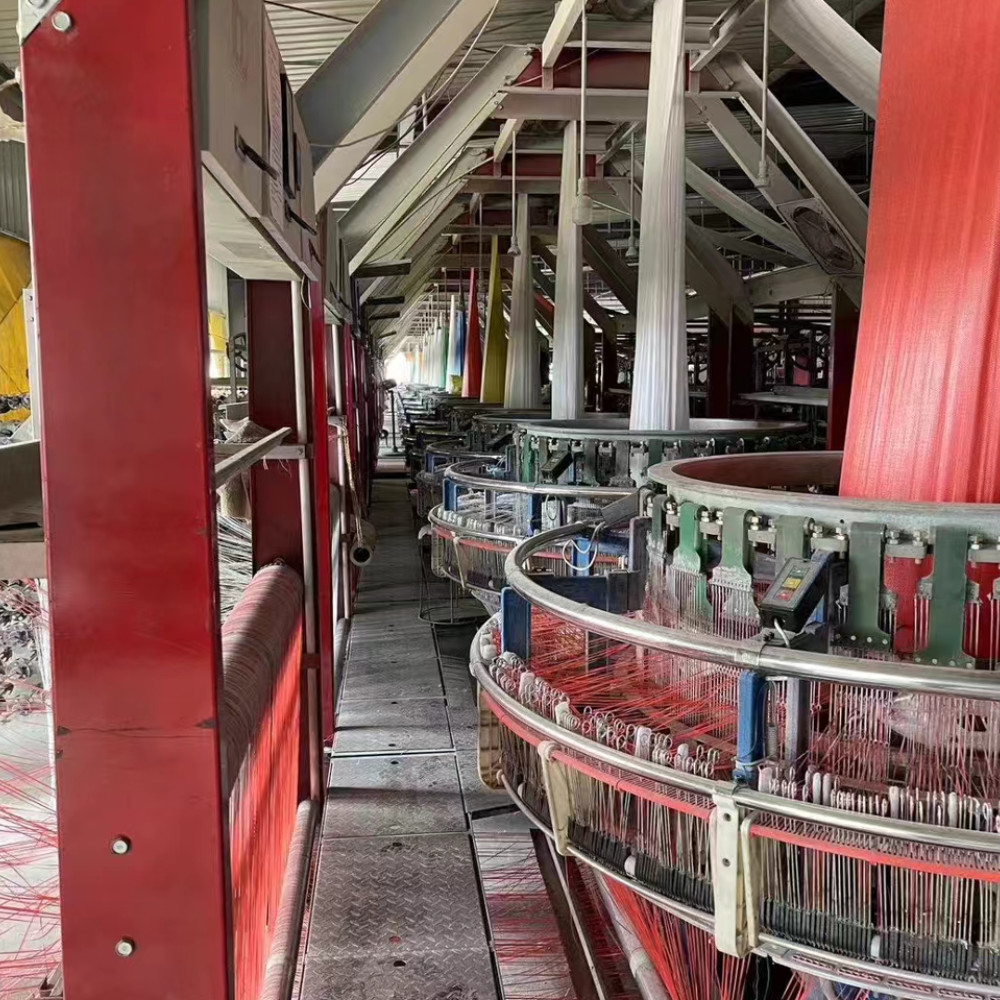

Machine Photos:



Used Circular Loom Machine For Woven Bags Universal Intelligent 0Used Circular Loom Machine For Woven Bags Universal Intelligent 1Used Circular Loom Machine For Woven Bags Universal Intelligent 2



FAQ:

1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)



2. How many days will you finish installing?
We will finish installation and training within 15 days.



3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.

4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.

5.How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
