Pre-Owned Circular Loom Machine - Multi-Purpose Weaving - Smart Control System

1 set
MOQ
negotiate
Price
Pre-Owned Circular Loom Machine - Multi-Purpose Weaving - Smart Control System
Features Gallery Product Description Request A Quote
Features
Specifications
Winding Motor Power: 10.1kgs Torque Motor
Normal Rating Of Main Motor: 2.21kw
Weft Density: 10-24PCS/10cm
Working Width: 60.1-750mm
Maximum Weaving Speed: 300-400 RPM
Power Consumption: 5-7 KW
Additional Features: Automatic Stop Motion, Electronic Control System
Condition: Used
Basic Infomation
Place of Origin: China
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: L/C,T/T
Supply Ability: 10 sets/month
Product Description

Pre-Owned Circular Loom Machine - Multi-Purpose Weaving - Smart Control System


Descripition:

Our pre-owned circular loom machine offers a cost-effective, high-performance solution for manufacturers seeking dependable woven fabric production. Designed for multi-purpose weaving, this machine efficiently handles polypropylene (PP), polyethylene (PE), and other thermoplastic tapes to produce high-quality woven tubular fabric for FIBC bags, tarpaulins, geotextiles, and more.

Despite being pre-owned, this unit has been fully inspected, cleaned, and tested to ensure optimal performance. It features a smart control system that simplifies operation with real-time monitoring, fault alerts, automatic warp break detection, and programmable weaving settings. The intuitive interface minimizes downtime and increases operational stability, even in high-volume production environments.

The circular loom includes 6 shuttle operation, smooth weft insertion, and uniform tension control, producing consistent fabric width and density. With an adjustable working width ranging between 350mm to 850mm, it supports versatile production needs across industries.

Built with a rugged frame and durable components, this pre-owned machine still promises longevity and low maintenance. It’s ideal for startups, expansion projects, or companies aiming to boost capacity without the high cost of new equipment.

If you’re looking for reliable performance, intelligent operation, and excellent ROI, this pre-owned circular loom machine is a smart investment for your woven fabric production line.




Main technical Datas:

Working width,double flat 60-750mm
Number of shuttles per machine 4
weft density 10-24pcs/10cm
Speed 0-120RPM
Warp feeding Motor
Inner diameter of Bobbin 38mm
Bobbin length 230mm
Max. bobbin diameter 100mm
Number of Warp yarns 512pcs
Normal rating of main motor 2.2kw
lift motor power : 22N
winding motor power: 10kgs Torque motor
Total power 3Kw
Installed size (mm) 10500* 2400* 3200
weight 2T

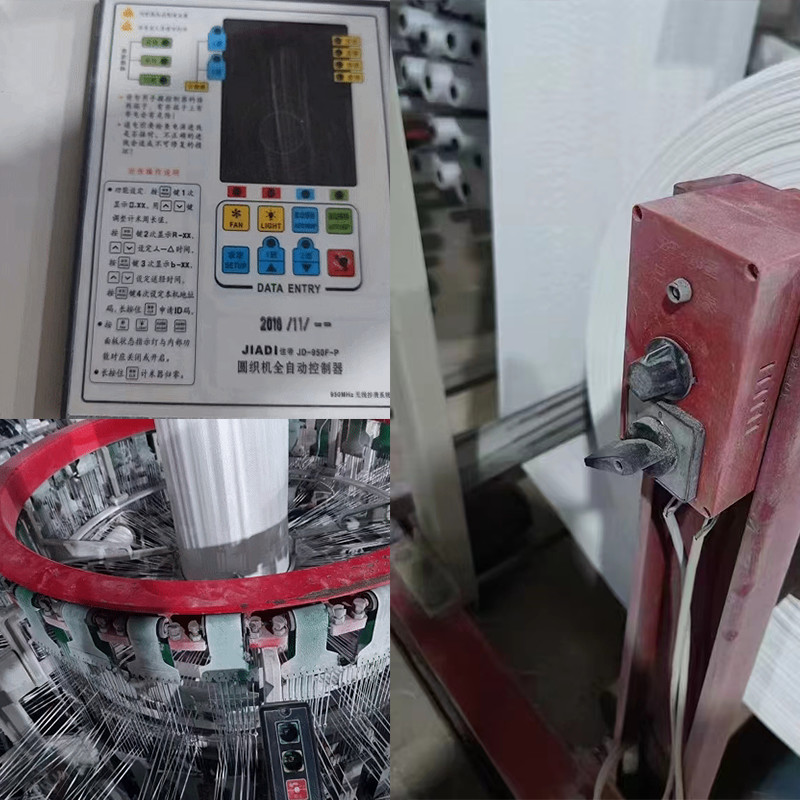

Machine Photos:


Pre-Owned Circular Loom Machine - Multi-Purpose Weaving - Smart Control System 0Pre-Owned Circular Loom Machine - Multi-Purpose Weaving - Smart Control System 1Pre-Owned Circular Loom Machine - Multi-Purpose Weaving - Smart Control System 2


FAQ:

1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)


2. How many days will you finish installing?
We will finish installation and training within 15 days.


3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.

4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.

5.How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
