3 Or 4 Strands Used Twisted Plastic PE PP Rope Making Machine
This industrial-grade twisting equipment is designed for producing high-quality, durable, and uniform ropes from polyethylene (PE) and polypropylene (PP) materials. The machine incorporates advanced extrusion and twisting technology, integrating strand feeding, twisting, and winding into a single automated system.
Supporting both 3-strand and 4-strand rope production, it offers manufacturers flexibility, efficiency, and consistent rope quality for applications in packaging, marine, agricultural, and industrial industries.
Machine Construction & Performance
Constructed with a reinforced steel frame and wear-resistant components, this twisting machine provides stable operation and long-lasting performance under continuous production conditions. Its precision gearbox, frequency-controlled motor, and automatic tensioning system ensure consistent twist rates and uniform strand alignment, resulting in smooth, strong, and high-strength ropes suitable for demanding environments.
Technical Design Features
The machine emphasizes ease of operation, energy efficiency, and reliable output. Equipped with digital display controls, adjustable speed settings, synchronized take-up rollers, and automatic tension regulation, operators can fine-tune production for different rope types and diameters. It accommodates virgin or recycled PE and PP raw materials, providing cost-effective and environmentally friendly rope manufacturing solutions.
Quality Assurance
Each unit undergoes rigorous testing including tensile strength testing, twisting precision inspection, motor performance evaluation, and bearing calibration to ensure stable and consistent output. The durable bearing system, reinforced drive components, and low-noise operation minimize maintenance requirements and extend service life.
Key Features
- Produces both 3-strand and 4-strand ropes for versatile applications
- Constructed with robust steel frame and wear-resistant components for durability
- Advanced high-precision gearbox and variable frequency speed control
- Automatic tension regulation and digital display control for precision
- Compatible with both virgin and recycled plastic pellets
- Energy-efficient design with low noise operation
- Widely used in packaging, agriculture, fishery, marine, and industrial applications
Technical Specifications
| Parameter |
Specification |
| Model |
UW100 |
| Quantity of spindle |
16pcs/group |
| Speed of spindle |
3000-4500rpm |
| Dia. of traveler ring |
φ100*16.7mm |
| Scope of twist |
60-800 |
| Twisting direction |
Z or S |
| Nylon bobbin size |
φ82*205*12.8mm |
| Dia. of roller |
φ51mm |

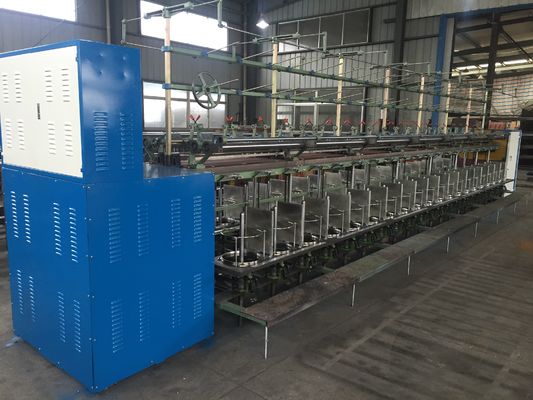

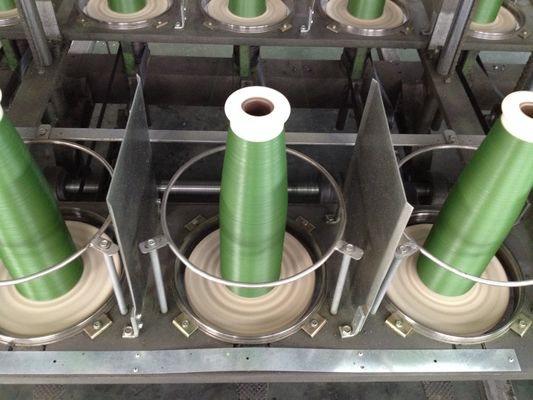

Product Images
Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are the manufacturer and also provide business solutions to all customers.
2. What payment terms do you accept?
30% deposit, with 70% balance paid by TT within 7 days before delivery or 100% irrevocable L/C at sight.
3. What's the delivery time?
Shipment arranged within 90 working days after order confirmation.
4. How to install and debug the machine after arrival?
We provide instructions and videos. Optional on-site engineer installation available at additional cost.
5. Is it easy to operate? What if it doesn't work?
Our machines are stable and easy to operate. We provide manuals, videos, and remote support within 36 hours. Optional engineer dispatch available.
6. How long is your machine's warranty period?
13 months warranty from the B/L date.
